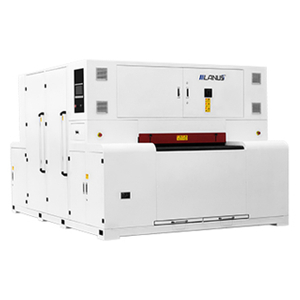

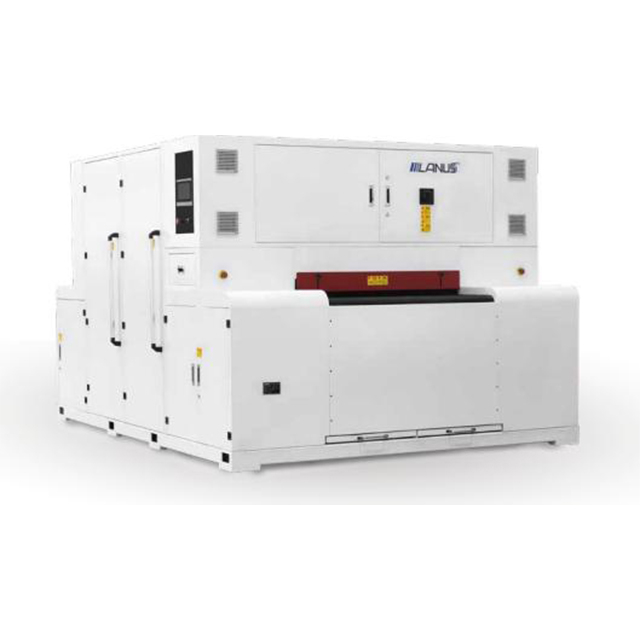

Plasma Cutting Flame Cutting Thick Plate Double-sided Deburring Machine

Machine performance：

Mainly for some medium and thick plates, large plates for single-sided or double-sided processing of slag, burrs generated by laser cutting, flame cutting, plasma cutting, stamping, shearing and other processes, surface pre-grinding, wire drawing and hole/edge chamfering polishing

Compatible Materials：

Carbon steel, stainless steel, aluminum plate, copper plate and other metal plates, thickness range 1-100mm

Machine advantages：

1.One machine with multiple workstations" reduces production line configuration costs;

2.Servo precision control ensures high-end workpiece consistency;

3.When grinding some large and thick plates, the machine's intelligent operation and through-type grinding greatly improves the efficiency compared to manual grinding.

1. Equipment processing width: 800mm, 1000mm, 1350mm, 1600mm, 2000mm, 2200mm, 2500mm equipment processing

2. Equipment processing thickness: 0.5-80mm

3. Conveying and feeding speed: 0.5-3m/min (variable frequency adjustable)

4. Optional feeding methods:

(1) Rubber roller clamp feeding (applicable to all metalworkpieces. Workpiece length ≥300mm)

(2) Strong permanent magnetic adsorption conveying and feeding (applicable to carbon steel workpieces. Workpiece size ≥30mm×30mm×1mm single-sided processing)

(3) Vacuum negative pressure adsorption conveying and feeding (applicable to stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size ≥50mm×50mm×1mm single-sided processing)

5. The rolling brush station is servo controlled for lifting and lowering, and the processing thickness is servo controlled for lifting and lowering, with a display accuracy of0.01mm.

6. Adjust machining parameters through the touchscreen of the CNC PLC for the entire machine.

7. Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to handle grinding dust and achieve environmentally friendly production.
