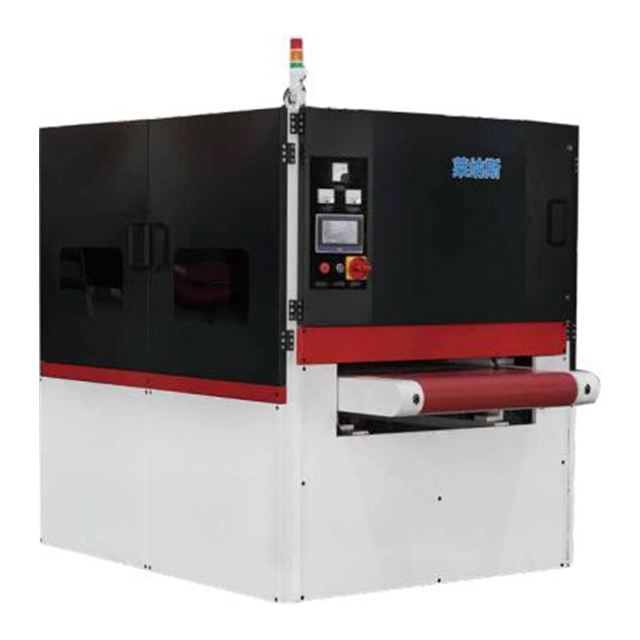

Efficient And Intelligent Metal Rounding And Deburring Machine

Product Overview

In metal fabrication, the smallest imperfection—a sharp edge, a stubborn burr—can slow down assembly, compromise safety, and reduce product value. The Efficient And Intelligent Metal Rounding And Deburring Machine is designed to eliminate these challenges with precision and consistency. More than just equipment, it is a productivity upgrade—helping manufacturers reduce manual finishing work, improve product quality, and ensure every component meets professional standards with minimal effort.

Machine Core Functions

Deburring, edge rounding, and surface treatment: Through the combination of "wide-width abrasive belt + universal roller brush" (single-station or multi-station), the deburring, edge rounding (R-angle effect), and surface brushing/polishing of metal sheets can be completed at one time, solving the slag and sharp edge problems caused by laser cutting, stamping and other processes.

Machine Advantages

1. Automated continuous processing can be achieved

Through the conveyor belt or with the robot to automatically feed up and down (our deburring machine series uses permanent magnet/vacuum adsorption system), 24-hour continuous production is achieved, which is 300%-500% more efficient than manual operation.

2. Multiple processes can be completed at one time

Deburring, edge rounding, surface polishing, and wire drawing can be completed simultaneously, which can shorten the process by more than 70%.

Equipment Configuration

1. Equipment processing width: 450mm, 800mm, 1000mm, 1350mm, 1600mm

2. Equipment processing thickness: 0.5-80mm

3. Conveying and feeding speed: 0.5-6m/min (variable frequency adjustable)

4. Optional feeding methods:

(1) Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size ≥ 30mm × 30mm × 1mm)

(2) Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size ≥ 50mm × 50mm × 0.5mm)

5. The rolling brush station is servo controlled for lifting and lowering, and the processing thickness is servo controlled for lifting and lowering, with a display accuracy of0.01mm.

6. Adjust machining parameters through the touchscreen of the CNC PLC for the entire machine.

7. Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to handle grinding dust and achieve environmentally friendly production.

Product Features

Advanced Edge Rounding Technology

The machine uses precision abrasive systems to create smooth, consistent edge radii, ensuring every processed part meets safety and aesthetic standards.

Integrated Deburring System

Micro-burrs formed during cutting or punching are effectively removed, improving both product performance and assembly compatibility.

Intelligent Control Interface

A user-friendly control system allows operators to adjust parameters quickly, reducing setup time and improving operational efficiency.

Stable Feeding Mechanism

The conveyor system ensures steady material movement, preventing scratches or deformation during processing.

Robust and Durable Construction

Built with a reinforced frame and high-quality components, the machine delivers long-term reliability even in demanding industrial environments.

FAQ

Q1: What materials can this machine process?
It is suitable for steel, stainless steel, aluminum, and other sheet metals.

Q2: Can the machine handle different thicknesses?
Yes, it supports a range of thicknesses depending on the configuration.

Q3: Is customization available?
Yes, we offer tailored solutions based on your production needs.

Q4: Is the machine easy to operate?
Yes, the intelligent control system simplifies operation and reduces training time.
