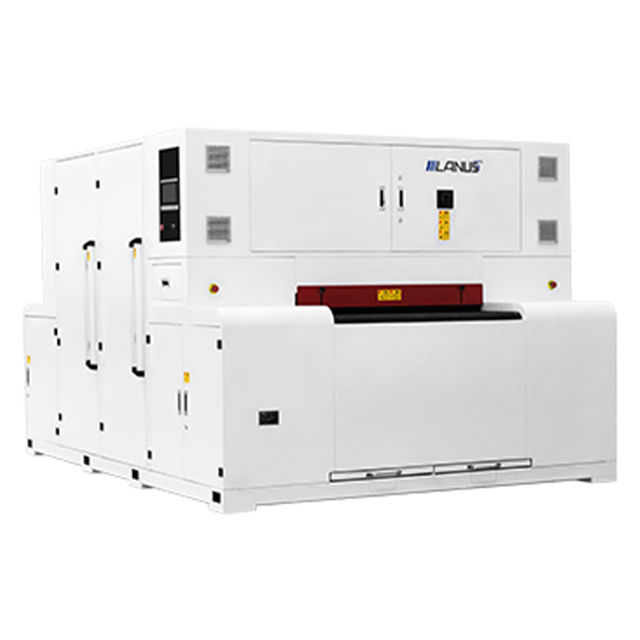

Automatic Slag Removal And Deburring Machine

LSB series

Medium and thick plate slag removal/deburring/chamfering equipment

Product application range:

The series of equipment includes wide/narrow abrasive belts and abrasive belts for single-sided or double-sided multi-station combination grinding. The equipment can achieve one-pass processing of single-sided or double-sided uniform removal of slag burrs formed by laser cutting, shearing, plasma cutting, flame cutting, stamping, machining, etc. of metal plates. It is suitable for pre-grinding of metal plate surfaces, deburring of holes and edges, and surface wire drawing.

Equipment configuration:

Equipment processing width: 800mm, 1000mm, 1350mm, 1600mm, 2000mm, 2200mm, 2500mm

Equipment processing thickness: 1-100mm

Optional feeding method

1. Conveyor belt + rubber roller clamp feeding (suitable for ordinary workpieces. Workpiece length>150mm)

2. Strong permanent magnetic adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm)

3. Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmx50mm) Rubber roller + rubber roller clamp feeding

Equipment advantagesEquipment advantages

It is suitable for processing slag, slag and burrs on the surface of batch medium and thick plates. It can grind one side or two sides automatically. It is well controlled by PLC. The grinding parameters can be input with one key. It can be removed in one pass to improve work efficiency.

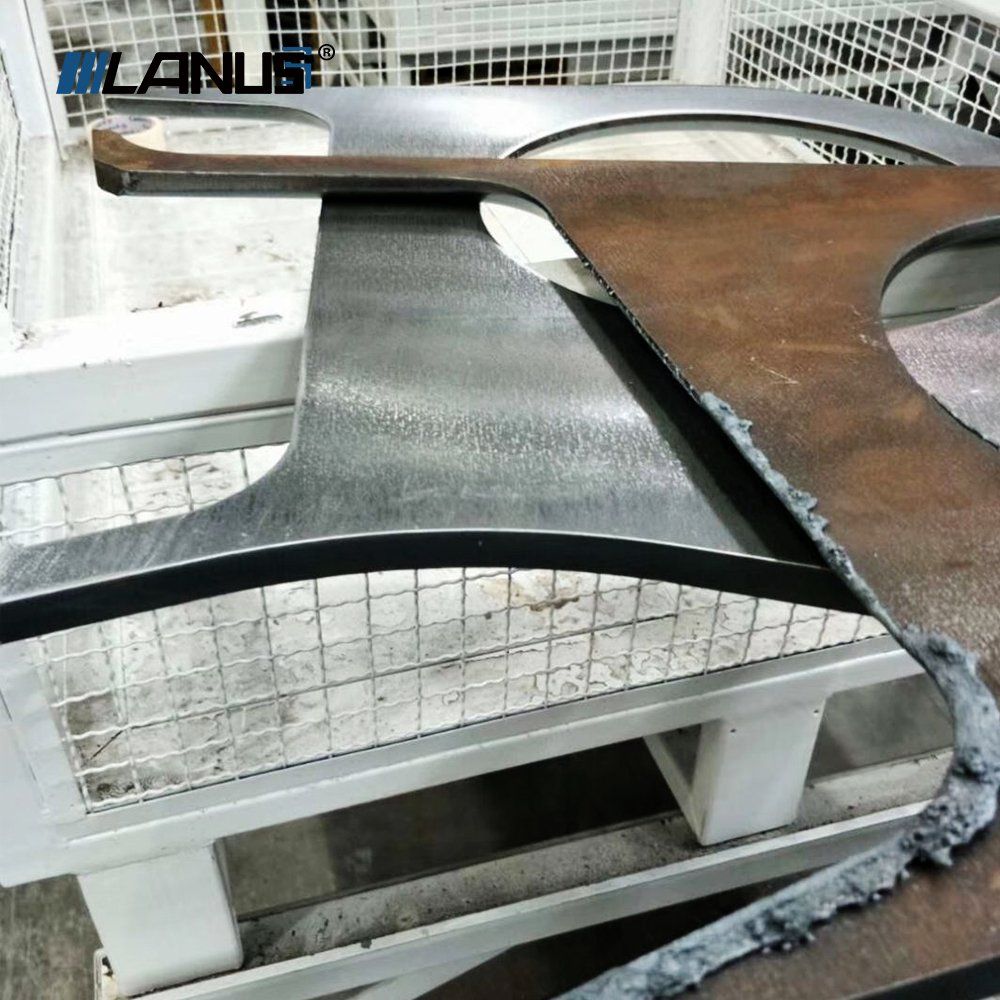

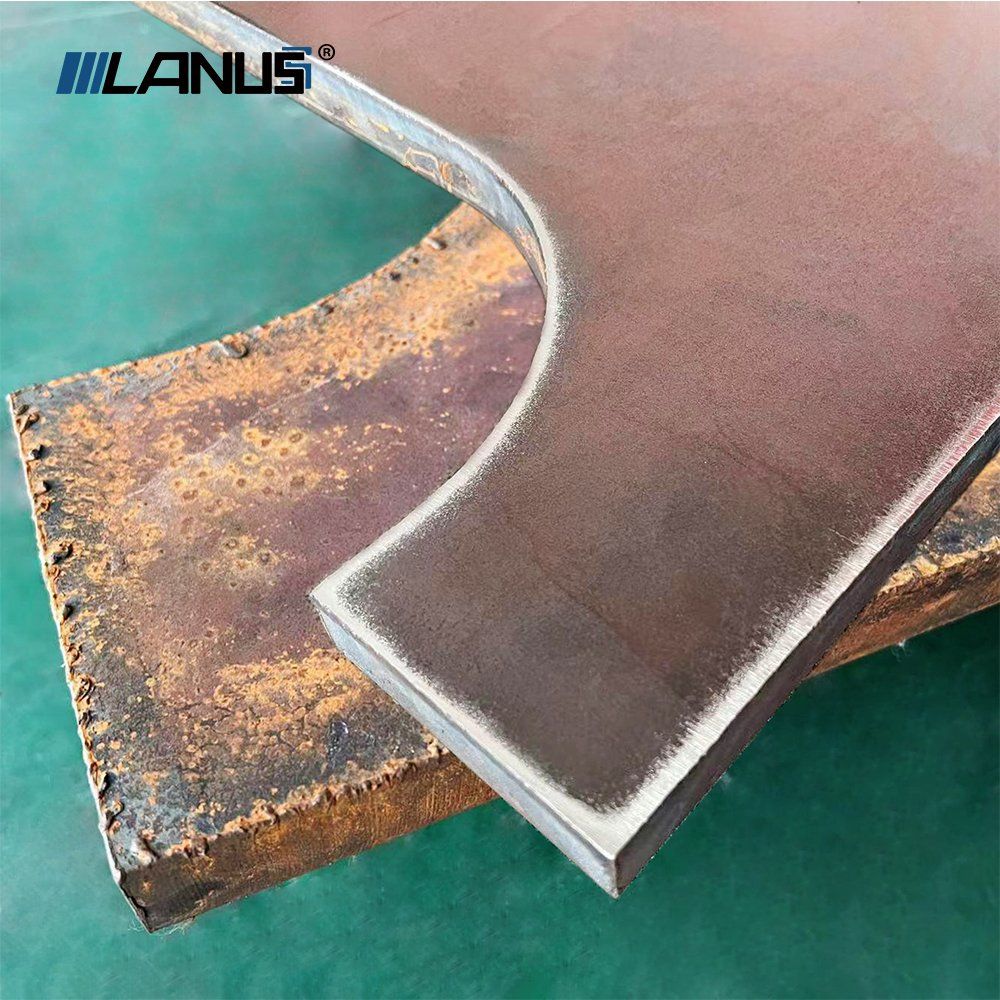

Comparison of workpiece before and after processing：
