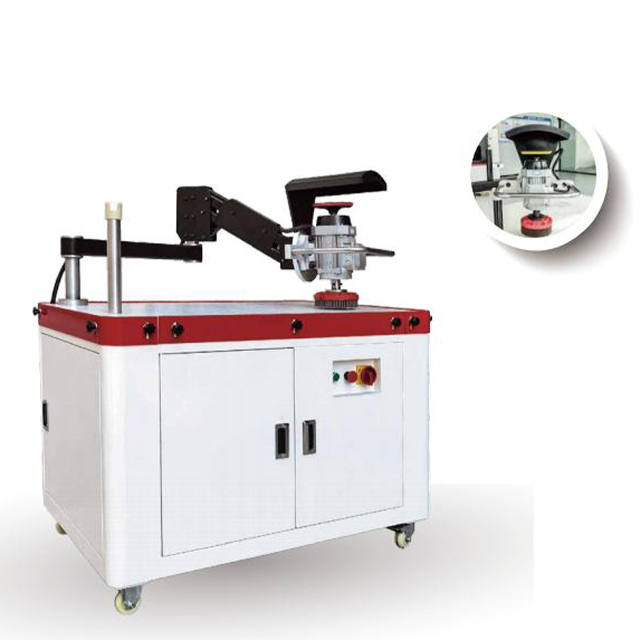

Efficient Precision Manual Sanding Polishing Deburring Machine for Laser Oxide Removal

Machine performance:

The machine is very convenient to use. You only need to press down lightly to achieve the desired grinding force. The self-controlled vacuum adsorption workbench automatically distributes vacuum suction. The workpiece only needs to be placed flat on the workbench and can be ground without any clamping. It is efficient and safe. Different disc brushes can be selected according to the actual workpiece to achieve the ideal effect. The machine has a built-in dust suction function, which automatically sucks away the grinding chips generated when grinding the workpiece, protecting the health of workers and keeping the workshop clean. One power and two grinding heads are configured. The grinding head can be quickly changed by rotating 180°. It is efficient, convenient, safe and energy-saving.

Technical parameters:

Vacuum adsorption platform size 400*280mm

Upper platform workpiece 1000*750mm

Under platform workpiece 1200*1200mm

Cantilever working range 1200*360°

Processing workpiece thickness range 0.5-150mm

Grinding head power 0.75kw

Grinding head speed 500-1400r/min

1. Simple operation and convenient maintenance

2. Affordable entry-level model

3. Over four times faster than conventional manual deburring finishing

4. Long service-life to reduce material cost

5. Vacuum area to keep small parts in place
