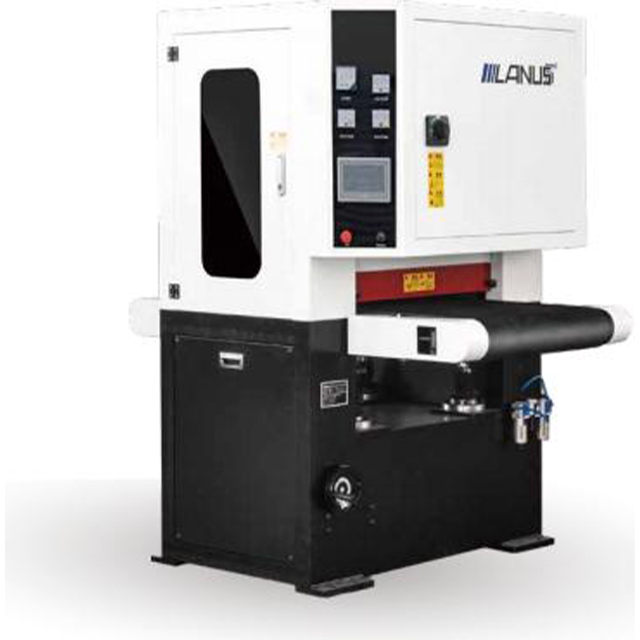

High-accuracy Automatic Dry Deburring And Wire Drawing Equipment for Removing Oxide Skin

Application:

Suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber and plastic materials, marble, graphite, etc.

Function:

Achieve the effects of wire drawing, precision polishing, scratch removal, longitudinal burr removal, and oxide skin removal on the surface of products, thereby making the surface of products more beautiful and smooth.

Parameters:

1. Equipment function: Suitable for surface drawing, polishing, scratch removal, longitudinal burr removal, oxide skin removal, hair pulling, thickness adjustment and other processing of various flat board parts.

2. Equipment combination: single or multiple combination structures of sanding belt and polishing wheel

3. Equipment processing width: 350mm, 650mm, 800mm, 1050mm, 1350mm, 1600mm, 2000mm, 2200mm

4. Equipment processing thickness: 1-80mm

5. Sand belt linear speed: 18m/s (optional variable frequency speed regulation)

6. Polishing wheel linear speed: 20m/s (optional variable frequency speed regulation)

7. Conveying and feeding speed: 2-11m/min (adjustable by frequency conversion)

8. Optional feeding mode:

(1) Conveyor belt+rubber roller clamp feeding (suitable for ordinary workpieces. Workpiece length ≥ 280mm)

(2) Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size ≥ 10mm × 10mm)

(3) Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size ≥ 50mm × 50mm)

(4) Rubber roller+rubber roller clamp feeding (suitable for large and heavy workpieces. Workpiece length ≥ 280mm)

9. Four column synchronous lifting, digital setting and reading of lifting height, unit: mm

10. Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to process grinding dust and achieve environmentally friendly production.

1.Processing width of equipment:800mm、1000mm、 1350mm、1600m、2000mm.

2. Optional feeding methods:

(1) Conveyor belt + rubber roller clamp feeding (applicable to all flat workpieces. Workpiece length ≥280mm)

(2) Strong permanent magnetic adsorption conveying feeding (applicable to carbon steel workpieces. Workpiece size ≥30mm×30mm×1mm)

(3) Vacuum negative pressure adsorption conveying and feeding (applicable to all flat workpieces. Workpiece size ≥ 50mm × 50mm × 0.5mm).

3. Servo lifting, digital setting of lifting height, display accuracy 0.01mm

4. Each station of the equipment is equipped with a spray water pipe to provide grinding fluid. The magnetic adsorption outlet is equipped with a demagnetizer to demagnetize the workpiece.

5. The matching automatic paper belt filter filters the grinding dust and provides grinding circulation grinding fluid to achieve environmentally friendly production .
