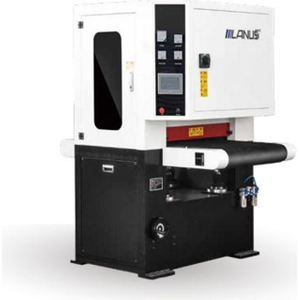

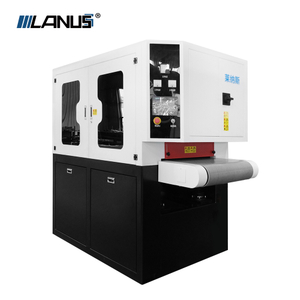

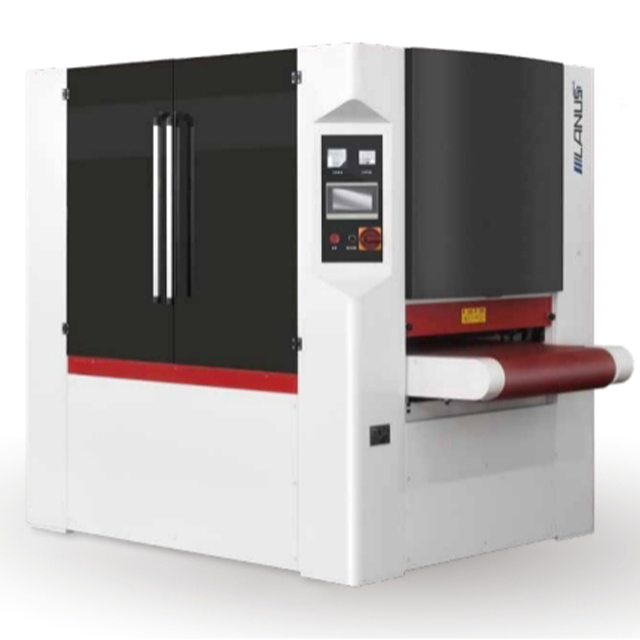

High-efficiency Fully Automatic CNC Deburring Edge Rounding Polishing Machine In One Pass

Application Industry:

Our products are widely used in the following industries, such as Sheet Metal Processing; Heavy Machinery; Auto Parts; Aerospace; Communications Electronics; Rail Transit; New Energy; Precision Machining; Kitchen Cabinet Tableware; Medical Equipment etc.

Function:

Our items can achieve the following functions, such as Burr Removal; Surface Polishing; Round Edge Chamfering & Blunting; Precision Grinding; Slag & Oxide Skin Removal; Wire Drawing etc. for Laser Cutting; Water Jet Cutting; Plasma Arc Cutting; Shearing; Stamping etc.

Material:

Suitable for processing following materials: Flat Plate Parts; Carbon Steel; Stainless Steel; Aluminum; Copper; Titanium Alloy; Various Non-ferrous Metals; Rubber & Plastic Materials; Marble etc.

Combination:

Wide sand belt + universal roller brush single or multiple combination structures.

Optional Feeding Methods:

1. Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm)

2. Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmx50mm)

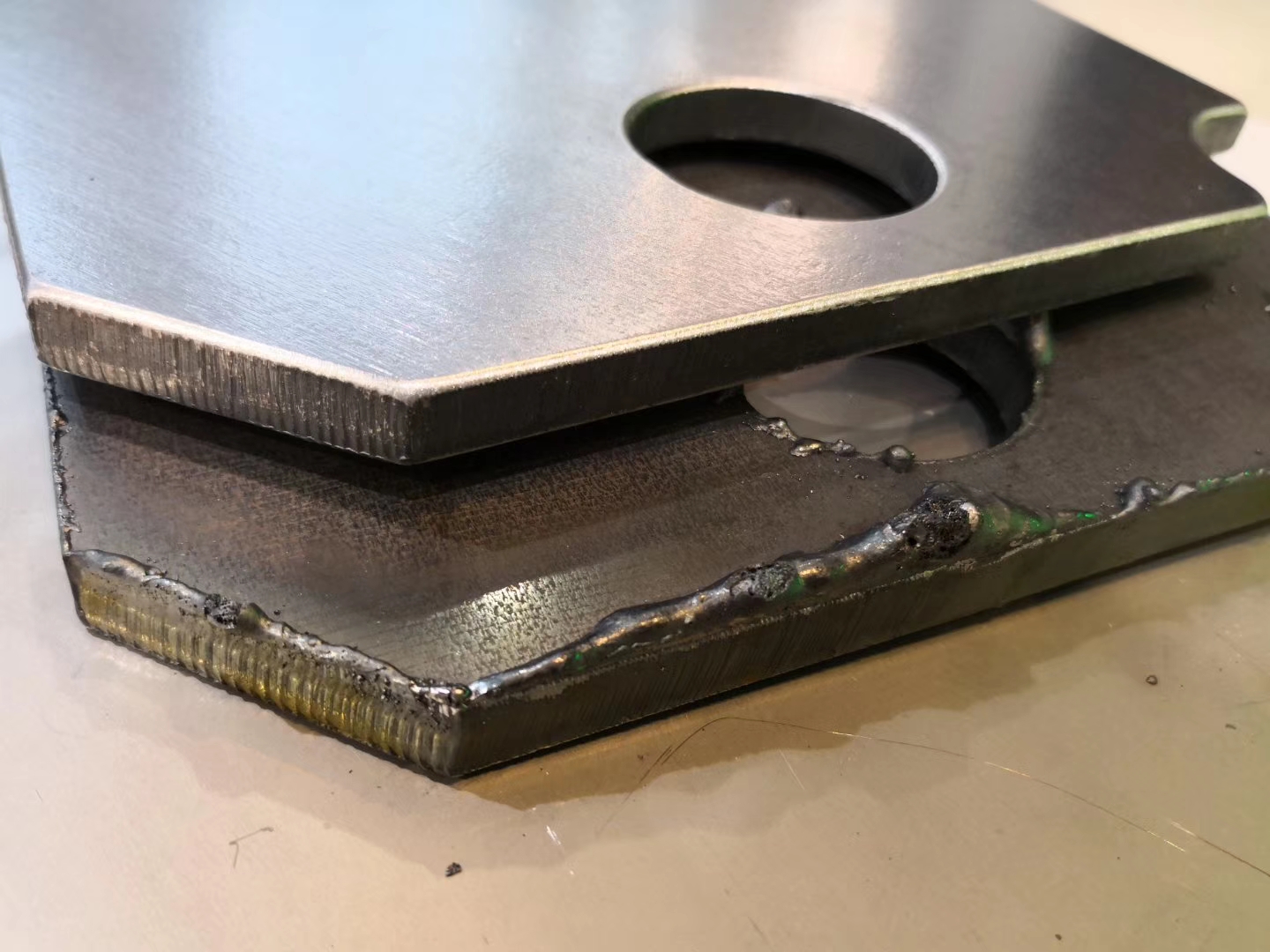

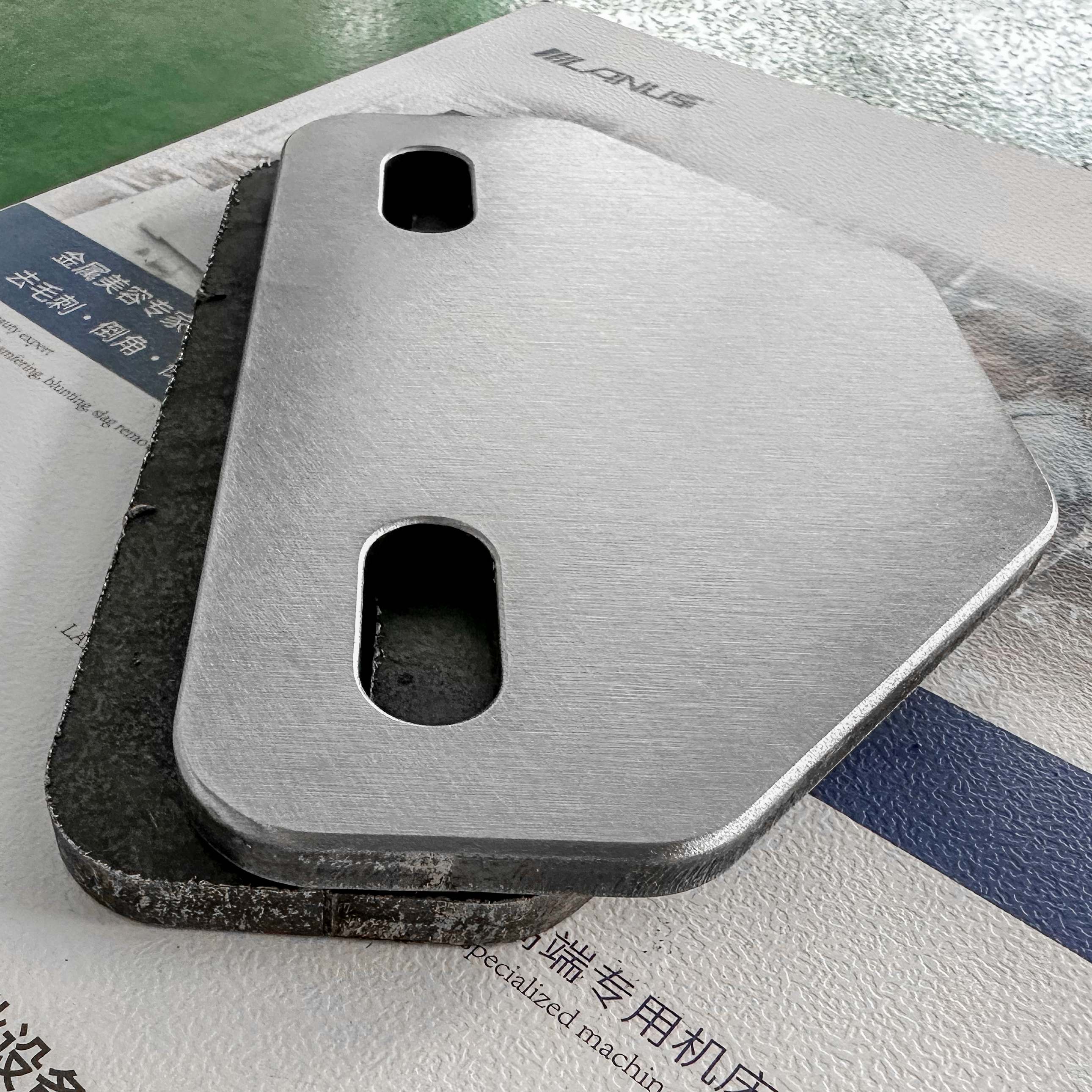

Comparison of Workpiece Before and After Processing:

1. Equipment processing width: 450mm, 800mm, 1000mm, 1350mm, 1600mm

2. Equipment processing thickness: 0.5-80mm

3. Conveying and feeding speed: 0.5-6m/min (variable frequency adjustable)

4. Optional feeding methods:

(1) Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size ≥ 30mm × 30mm × 1mm)

(2) Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size ≥ 50mm × 50mm × 0.5mm)

5. The rolling brush station is servo controlled for lifting and lowering, and the processing thickness is servo controlled for lifting and lowering, with a display accuracy of0.01mm.

6. Adjust machining parameters through the touchscreen of the CNC PLC for the entire machine.

7. Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to handle grinding dust and achieve environmentally friendly production.
