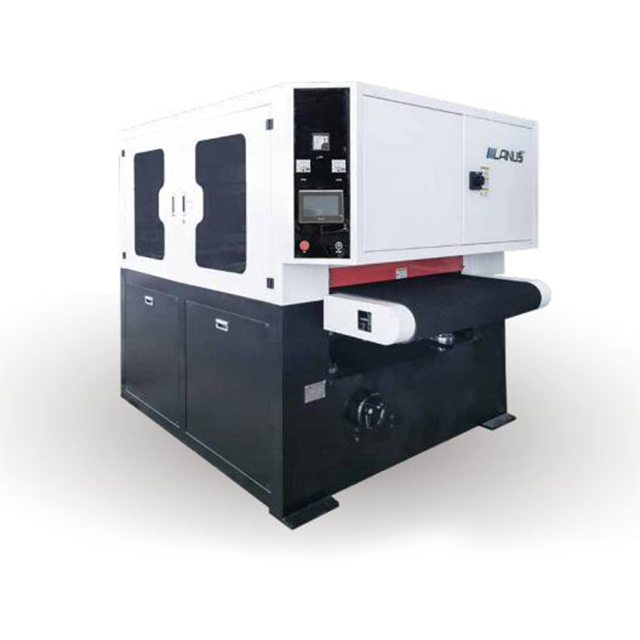

High-accuracy Automatic Aluminum Polishing Hairline Drawing Deburring Machine for Sheet Metal Finishing

Machine technical parameters:

Equipment processing thickness 0.5-80mm

Abrasive belt linear speed 12m/s (optional variable frequency speed regulation)

Disc brush rotation speed 800-1500r/min (optional variable frequency speed regulation)

Disc brush revolution speed 50-150r/min (optional variable frequency speed regulation) speed

Disc brush combination swing frequency 120-280 times/min (optional variable frequency adjustable)

Conveyor feeding speed 0.5-6m/min (variable frequency adjustable)

Applicable industries:

1. Metal processing and manufacturing industry

Auto parts: deburring and polishing of metal parts such as gears, bearings, and transmission shafts.

Aerospace: high-precision deburring of aircraft engine blades, landing gear, and aluminum alloy structural parts.

Mold industry: polishing of edges and corners of injection molds, stamping molds, and other molds.

Precision machinery: edge processing of hydraulic valve blocks, CNC machine tool parts, and hardware.

2. Electronics and semiconductor industry

Electronic components: burr removal of mobile phone/computer housings, heat sinks, and connectors.

Semiconductor packaging: edge polishing after wafer cutting to prevent microcracks.

PCB circuit boards: remove copper foil burrs after drilling to improve line flatness.

3. Medical equipment and food equipment

Surgical instruments: traceless deburring of stainless steel scalpels and orthopedic implants.

Food machinery: polishing of stainless steel containers and pipeline welds to meet hygiene standards.

5. New energy industry

Battery components: burr removal of lithium battery poles and aluminum shells (anti-short circuit).

1.Processing width of equipment:400mm、650mm、1000mm、1350mm

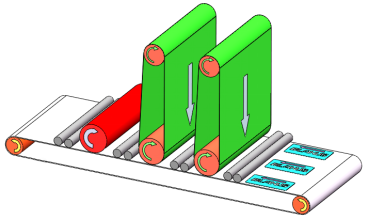

(1) 400mm width consists of4 planetary brushes, each brush rotates, and the entire brush assembly revolves

(2) 650mm width consists of5 staggered brushes, two adjacent brushes rotate forward and backward, and the entire brush assembly swings horizontally in the vertical direction of the feed

(3) 1000mm width consists of7 staggered brushes,two adjacent brushes rotate forward and backward, and the entire brush assembly swings horizontally in the vertical direction of the feed

(4) 1350mm width consists of9 staggered brushes,two adjacent brushes rotate forward and backward, and the entire brush assembly swings horizontally in the vertical direction of the feed

2. Optional feeding methods:

(1) Conveyor belt + rubber roller clamp feeding (applicable to all flat workpieces. Workpiece length ≥300mm)

(2) Strong permanent magnetic adsorption conveying feeding (applicable to carbon steel workpieces. Workpiece size ≥30mm×30mm×1mm)

(3) Vacuum negative pressure adsorption conveying and feeding (applicable to all flat workpieces. Workpiece size ≥50mm×50mm×0.5mm)

3. Servo lifting, digital setting of lifting height, display accuracy 0.01mm

4. Equipped with a wet dust collector to process grinding dust and achieve environmentally friendly production.
