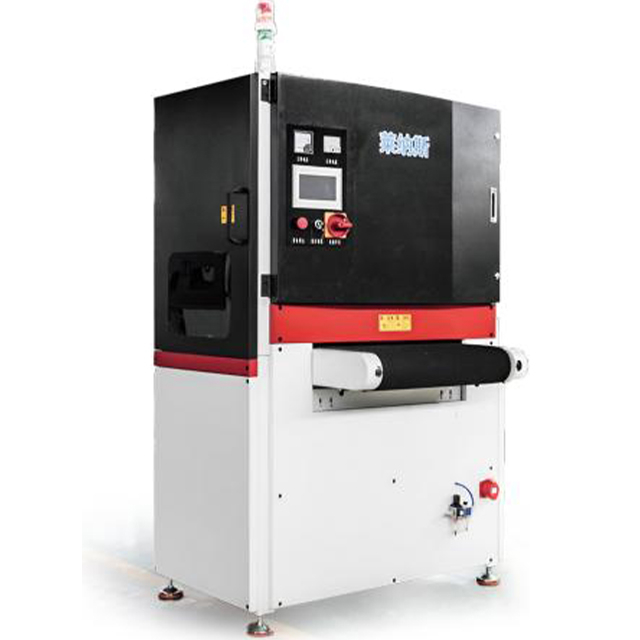

Metal Deburring Machine with Grinding Wheel Grinding Copper Plate Aluminum Plate Carbon Steel Plate

Machine Features：

You can freely choose single belt or multiple belt grinding units for grinding. You can also match the polishing wheel and wire drawing machine structure for rough grinding or fine polishing of the surface.

Machine advantages：

1.High precision and intelligent control

  Lifting accuracy up to 0.01mm, digital settings and real-time readings (unit: mm) ensure the consistency of           processing thickness and avoid traditional mechanical errors

2.Adaptive parameter adjustment

 The belt speed (18m/s), polishing wheel speed (20m/s) and feeding speed (2-11m/min) all support variable   frequency stepless speed regulation to meet different material and process requirements

1.Processing width of equipment:800mm、1000mm、 1350mm、1600m、2000mm

2. Optional feeding methods:

(1) Conveyor belt + rubber roller clamp feeding (applicable to all flat workpieces. Workpiece length ≥280mm)

(2) Strong permanent magnetic adsorption conveying feeding (applicable to carbon steel workpieces. Workpiece size ≥30mm×30mm×1mm)

(3) Vacuum negative pressure adsorption conveying and feeding (applicable to all flat workpieces. Workpiece size ≥ 50mm × 50mm × 0.5mm).

3. Servo lifting, digital setting of lifting height, display accuracy 0.01mm
