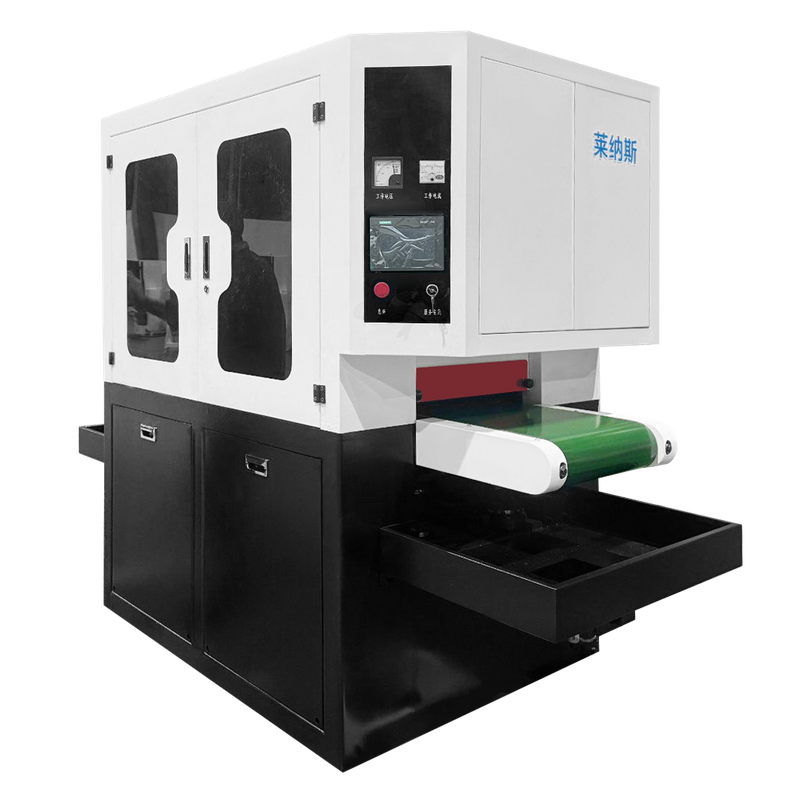

High-precision Deburring Machine Suitable for Automotive Parts And Gear Parts Grinding

Machine advantages：

1.Small and medium-sized gear parts can be processed in batches, especially suitable for automotive precision gears, with surface roughness within Ra0.5, which can increase the gear life by more than 30%.

2.It can match and select multiple grinding units of abrasive belts and brush discs for single-sided or double-sided grinding, and can also support automatic loading and unloading of robots, adapting to efficient fine blanking production lines;

Processing capabilities:

1. Width range: 300mm (3 brushes) to 1350mm (9 brushes), suitable for workpieces of different sizes27.

2. Thickness range: 1–100mm, compatible with thin to thick plates7

3.Processing speed control:Disc brush rotation speed 3000r/min (adjustable by frequency conversion), revolution speed 150r/min, swing frequency 120-280 times/min. Accuracy up to 0.01mm

1.Processing width of equipment:400mm、650mm、1000mm、1350mm

(1) 400mm width consists of4 planetary brushes, each brush rotates, and the entire brush assembly revolves

(2) 650mm width consists of5 staggered brushes, two adjacent brushes rotate forward and backward, and the entire brush assembly swings horizontally in the vertical direction of the feed

(3) 1000mm width consists of7 staggered brushes,two adjacent brushes rotate forward and backward, and the entire brush assembly swings horizontally in the vertical direction of the feed

(4) 1350mm width consists of9 staggered brushes,two adjacent brushes rotate forward and backward, and the entire brush assembly swings horizontally in the vertical direction of the feed

2. Optional feeding methods:

(1) Conveyor belt + rubber roller clamp feeding (applicable to all flat workpieces. Workpiece length ≥300mm)

(2) Strong permanent magnetic adsorption conveying feeding (applicable to carbon steel workpieces. Workpiece size ≥30mm×30mm×1mm)

3. Servo lifting, digital setting of lifting height, display accuracy 0.01mm

4. Each station of the equipment is equipped with a spray water pipe to provide grinding fluid. The magnetic adsorption outlet is equipped with a demagne- tizer to demagnetize the workpiece.

5. The matching automatic paper belt filter filters the grinding dust and provides grinding circulation grinding fluid to achieve environmentally friendly production
