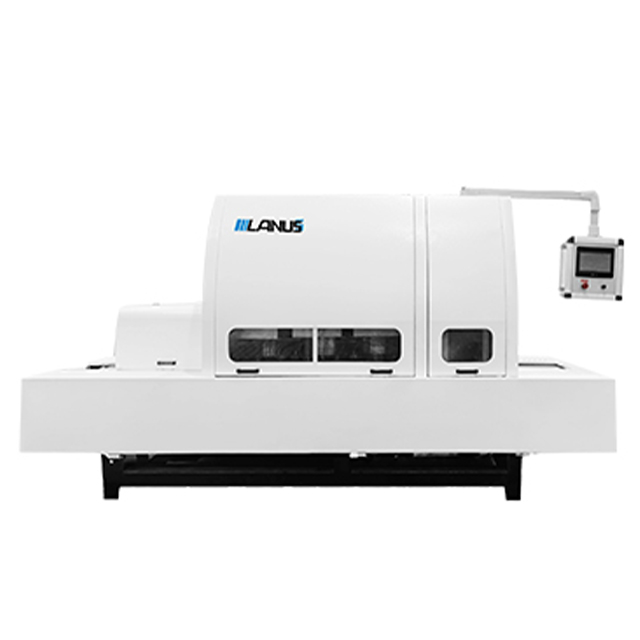

Precision hole parts deburring and chamfering machine

LSD series Function：

Applicable to precision stamping parts, gear parts, auto parts, powder metallurgy parts, machined parts, etc. Equipment function: Deburr the edges and holes of the workpiece to make the surface of the workpiece consistent and all edges and holes have uniform R arc

Equipment combination：

Belt grinding station + disc brush grinding station single or multiple combination structures

Equipment processing width:

1.300mm, 400mm, 650mm, 1050mm, 1350mm,

300mm Width: 3 planetary brushes, single brush rotates, the whole brush assembly revolves 2,

400mm Width: 4 planetary brushes, single brush rotates, the whole brush assembly revolves 3,

650mm Width: 5 staggered brushes, two adjacent brushes rotate forward and reverse, the whole brush assembly swings 4,

1050mm Width: 7 staggered brushes, two adjacent brushes rotate forward and reverse, the whole brush assembly swings 5,

1350mm The width is composed of 9 staggered disc brushes, and the adjacent two disc brushes rotate forward and backward, and the entire disc brush combination swings horizontally in the vertical direction of the feed Conveyor

Feeding method

1.belt + rubber pressure roller clamp feeding (suitable for pipe-through workpieces. Workpiece length>300mm)

2. Strong permanent magnetic adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm)

3. Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmX50mm)

 High precision equipment

Four-column synchronous lifting, digital setting and reading of lifting height, unit mm

6. Each station of the equipment is equipped with a spray water pipe to provide grinding fluid. The magnetic adsorption outlet is equipped with a demagnetizer to demagnetize the workpiece. 7. The matching automatic paper belt filter filters the grinding dust and provides grinding circulation grinding fluid to achieve environmentally friendly production.

 Advantages of wet processing

1. The cold processing of wet processing workpieces is not easy to deform due to heat;

2. The surface roughness of wet processing workpieces is better;

3. The grinding dust of wet processing is completely absorbed, and the working environment is better;

4. The service life of wet processing consumables is longer.
