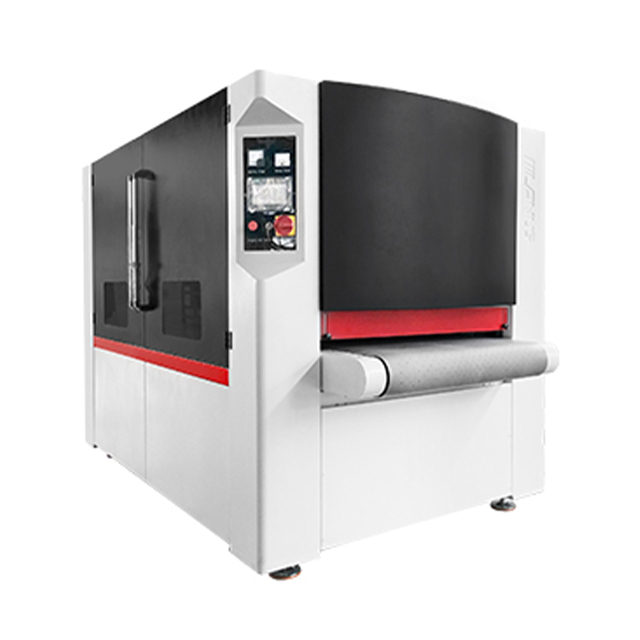

Premium Full Automatic Stainless Steel Sheet Metal Grinding Deburring Machine

Lanuss Premium Full Automatic Stainless Steel Sheet Metal Grinding Deburring Machine

Application Scope:

Suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber materials, etc.

Item Function:

Pre-grinding, drawing, polishing, scratch removal, deburring, chamfering and blunting of workpiece surfaces for laser cutting; water jet cutting; plasma arc cutting; shearing; stamping etc.

Item Combination:

Wide abrasive belt + universal roller brush single or multiple combination structures

Technical Specifications:

Processing width: 300mm, 450mm, 800mm, 1000mm, 1350mm, 1600mm

Processing thickness: 0.5~100mm

Conveying and feeding speed: 0.5-8m/min (variable frequency adjustable)

Four column synchronous lifting, independent lifting of roller brush station, servo control for lifting, accuracy of 0.01mm.

Adjust machining parameters through the touch screen of the CNC PLC for the entire machine.

Optional Feeding Mode:

1. Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size ≥ 10mm × 10mm)

2. Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size ≥ 50mm × 50mm)
