Metal fabrication thrives on precision, yet the final step often dictates a part's success or failure in the field. Modern cutting processes like laser, plasma, and waterjet cut rapidly but leave behind a problematic Heat Affected Zone (HAZ). This localized thermal stress makes metal edges remarkably hard, brittle, and highly prone to micro-cracking.
Simply removing the slag or achieving a standard "burr-free" state is rarely sufficient. Sharp 90-degree corners create immediate bottlenecks for downstream processes like high-end coating, precision welding, or manual handling. Paint naturally pulls away from these sharp points, inevitably leading to premature rust and rejected batches.
Fabricators must choose how they handle this persistent challenge. They can rely on labor-intensive manual methods, offering flexibility for one-off parts but posing severe scaling risks. Alternatively, operations can invest in an automated edge rounding machine for consistent throughput and strict standard compliance. We will explore both paths below.
Burr-free ≠ Rounded: Removing sharp burrs does not eliminate the sharp 90-degree corner or the brittle HAZ, which are the primary culprits for coating failure.
Compliance Driven: International standards (EN 1090, ISO 12944) increasingly mandate a minimum 2mm edge radius to guarantee corrosion protection and paint adhesion.
Manual Limitations: Manual grinding is prone to creating inconsistent "flat spots," disrupting surface finishes, and causing Repetitive Strain Injury (RSI) in operators.
Automation Versatility: Modern edge rounding machines can process parts as small as 2x2 inches via vacuum tables, uniformly rounding edges without destroying sensitive surface treatments (e.g., zinc coatings or PVC films).
Liquid coatings obey strict physical laws during the curing process. Surface tension causes paint to naturally pull away from sharp 90-degree angles. This retraction leaves extremely thin coverage directly on the edge. Moisture eventually penetrates this thin barrier, triggering premature rust and structural degradation.
Industry regulators recognize this physical limitation. Consequently, meeting international compliance standards like ISO 12944, ISO 8501, and EN 1090 strictly requires a uniform minimum radius of 2mm. This specific measurement guarantees protective layer integrity. Audits frequently fail if inspectors find merely "burr-free" edges instead of true 2mm radiuses.
Certain advanced industries require perfection far beyond basic rust prevention.
Specialty Coatings: Conductive coatings, high-heat paints, and cryogenic stability treatments require perfectly smooth substrates. Any microscopic edge jaggedness causes these specialized treatments to crack or fail under thermal expansion.
Hygiene and Sanitation: Food processing and pharmaceutical equipment follow uncompromising rules. Sharp creases and microscopic edge defects harbor bacterial and microbial growth. A uniform, polished radius is a non-negotiable sanitary requirement dictated by health safety guidelines.
Fabricators must distinguish between a crude "knock-off" corner and a precision radius edge. A quick knock-off corner works adequately for hidden internal structures. However, exposed architectural elements or parts featuring a #4 or #8 mirrored stainless finish demand perfection. Aggressive manual grinding easily ruins these expensive surface treatments. Advanced mechanical systems process these edges gently, preserving the factory finish while achieving the required safety radius.
Many shops still rely heavily on angle grinders. Operators traditionally progress through a stepped methodology. They start using aggressive 40-grit flap discs for primary stock removal. Next, they switch to 120-grit discs for initial smoothing. Finally, they use palm sanders or polishing wheels to blend the finish.
This method finds its best use case in organic, irregular, or custom 3D shapes. Handheld tools excel when handling massive heavy plate fabrications where automated feed-through remains physically impossible.
However, the risks are substantial. Hand grinding carries a high risk of creating "flat spots." Uneven pressure naturally occurs when human arms tire. Flap discs act more forgivingly than hard grinding wheels, yet they still rely heavily on operator skill. Inconsistent results plague shops relying exclusively on manual grinding.
An alternative manual technique involves cold milling. Operators use handheld pneumatic tools fitted with dedicated carbide corner-rounding end mills. They route the tool along the material profile.
This approach offers unique advantages. It produces heavy, large chips falling directly to the floor. Shops avoid generating hazardous respirable dust or dangerous sparks. Furthermore, the cold cutting process operates without introducing secondary heat discoloration to the metal.
Limitations inevitably arise. Cold milling operates much slower than automated line processing. The physical tooling also imposes minimum hole diameter constraints. You typically cannot route internal cutouts smaller than 16mm (5/8 inch).
Managers must calculate the hidden liabilities of manual processing. True costs extend far beyond the hourly wages of grinding personnel. Consider the variable batch quality causing friction downstream. You must account for rework rates when quality control rejects poorly prepped paint jobs. Additionally, worker compensation risks remain exceptionally high. Ergonomic stress from heavy tool vibration frequently leads to Repetitive Strain Injury (RSI), severely hurting workforce availability.
Upgrading to automation fundamentally shifts production dynamics. Automated systems manage complex progressions from heavy slag removal to fine radiusing without requiring any operator intervention between steps. Parts feed into the machine once. They emerge fully prepared for the paint booth. This single-pass capability drastically cuts down floor transit time.

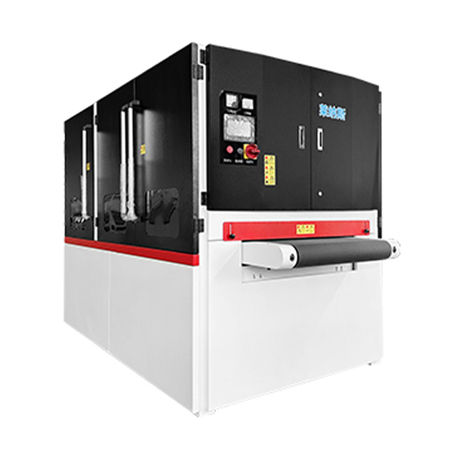

A typical edge rounding machine utilizes a combination of distinct modules. Each module serves a highly specialized function.
Abrasive Configuration | Primary Function | Operational Characteristics |
|---|---|---|
Abrasive Drums/Belts | Heavy deburring and primary edge breaking | Removes stubborn dross and vertical burrs quickly using aggressive rigid abrasives. |
Top Brushes | Macro-radius creation and blending | Counter-rotating cylinders blend directional scratches left by the preceding drums. |
Rotary Brushes (Carousel) | Perfect edge wrapping and uniform rounding | Flexible abrasive flaps whip across edges from a full 360 degrees without thinning flat surfaces. |
Modern equipment relies on precise calibration rather than brute force. Technicians establish a "zero calibration point" before running production. At this specific height, the abrasive brush tips barely touch the flat part surface. Operators control the exact rounding radius strictly by adjusting two primary parameters. They modify the conveyor feed speed and tweak the downward pressure of the abrasive heads. Slowing the conveyor and slightly lowering the rotary brushes yields a heavier cut, easily achieving the required 2mm (0.080") radius uniformly across thousands of parts.
Different metals react uniquely to abrasive friction. You cannot apply a universal setting across all jobs. Operators must match their approach to the specific substrate.
Thin Galvanized Steel: This material demands high conveyor feed speeds combined with light brush pressure. The goal requires rounding the sharp steel edge without aggressively stripping the vital, thin zinc coating from the flat surface area.
Thick Aluminum Plate: Laser-cut aluminum often features heavy, gummy saw-tooth burrs. Aluminum requires slower feed rates. Operators must increase drum and brush pressure to effectively shear off the soft, sticky slag before radiusing begins.
Oiled/Pickled Sheets: You can process oily materials mechanically. However, it requires an edge rounding machine equipped with robust internal dust-extraction systems. Facilities must implement frequent cleaning schedules to prevent the wet dust from glazing the abrasive belts.
Part geometry dictates processing strategies just as much as material type. Many fabricators fear small parts will fly off the high-speed conveyor belt during operation. Modern machines neutralize this threat entirely. Integrated vacuum beds generate immense downward suction. They securely hold nested, lightweight parts as small as 2x2 inches safely in place under the aggressive brushes.
Internal cutouts and holes demand differentiated processing intent. You must evaluate the ultimate purpose of the hole. Threaded holes or friction-fit cutouts may require masking or specific brush setups to retain necessary sharpness. Conversely, cable routing holes require deep, perfectly smooth radii. A polished cable hole eliminates the need to install secondary protective rubber grommets later.
Making the leap from handheld pneumatic cutters to a fully integrated conveyor-belt system requires careful evaluation. Managers must determine the specific volume at which automation becomes essential. Tracking weekly labor hours spent exclusively on hand deburring reveals the true baseline. Once output scales up, shifting to a dedicated edge rounding machine typically yields a sub-12-month return on investment through massive labor savings and accelerated production speeds.
Review the exact specifications of your facility's output. Does the shop primarily produce hidden structural components? If so, manual knock-off corners remain perfectly acceptable. However, the calculation changes entirely if you produce exposed panels, coated structures, food-grade hoppers, or architecturally finished parts. These strict end-uses demand automated rotary brushes to guarantee defect-free surfaces.
Production Variable | Manual / Hand Grinding | Automated Edge Rounding Machine |
|---|---|---|
Part Volume | Low (Custom prototypes, 3D parts) | High (Continuous flat plate production) |
Labor Intensity | Extremely high, physically demanding | Very low, primarily loading/unloading |
Finish Consistency | Variable, prone to flat spots | Uniform 2mm radius every time |
Surface Preservation | High risk of scratches/damage | Preserves PVC films and zinc layers |
We strongly recommend testing before finalizing any equipment purchase. Gather physical part samples representing your most challenging work. Select your thinnest galvanized sheets, thickest aluminum plates, and components featuring complex internal hole geometries. Send these physical samples directly to equipment manufacturers. Request a comprehensive time-study and a radius-validation test. Seeing your actual parts perfectly radiused provides ultimate confidence in the technology.
Relying exclusively on "burr-free" manual grinding acts as a massive production bottleneck. It scales poorly and frequently compromises critical coating integrity.
Upgrading your facility to a dedicated edge rounding machine standardizes part quality across every shift.
Automation guarantees strict compliance with international paint-adhesion standards like ISO 12944.
Removing heavy grinding tasks frees up your highly skilled labor to focus on higher-value fabrication tasks like precision welding or assembly.
Action Step: Evaluate your current rework rates in the paint booth today. Then, request an automated sample run from a trusted equipment vendor to see the difference firsthand.
A: Visual inspection alone is insufficient for compliance audits. You must use high-end laser scanning tools. These handheld devices map the exact material edge profile. The accompanying software calculates the precise half-diameter radius, ensuring you meet strict EN 1090 or ISO requirements without guesswork.
A: No. Advanced machines equipped exclusively with multi-directional soft rotary brushes prevent this damage. Technicians calibrate the zero-point perfectly so flexible abrasive flaps whip against the exposed cut edges. They round the sharp corner cleanly without tearing, melting, or scratching the factory-applied protective sheeting.
A: Yes. Multi-head machines handle sequential operations easily. You configure them using front drums to knock off heavy burrs, middle rotary brushes to create the edge radius, and rear finishing belts to apply a uniform linear grain. Parts emerge fully finished in a single pass.
